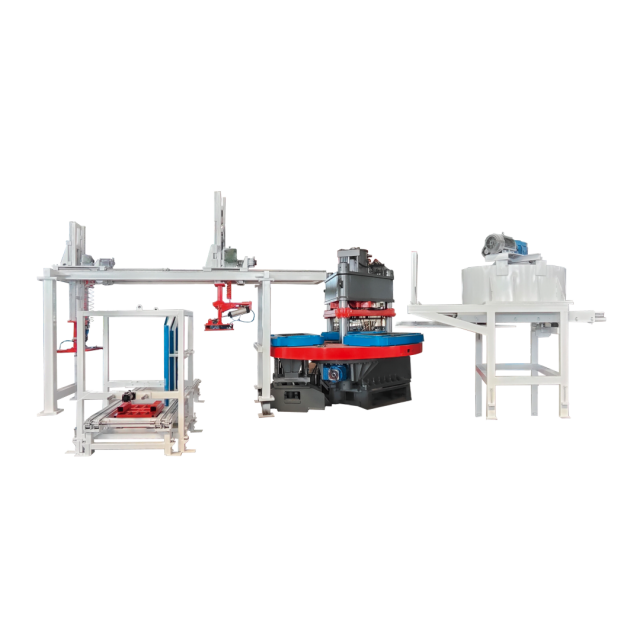

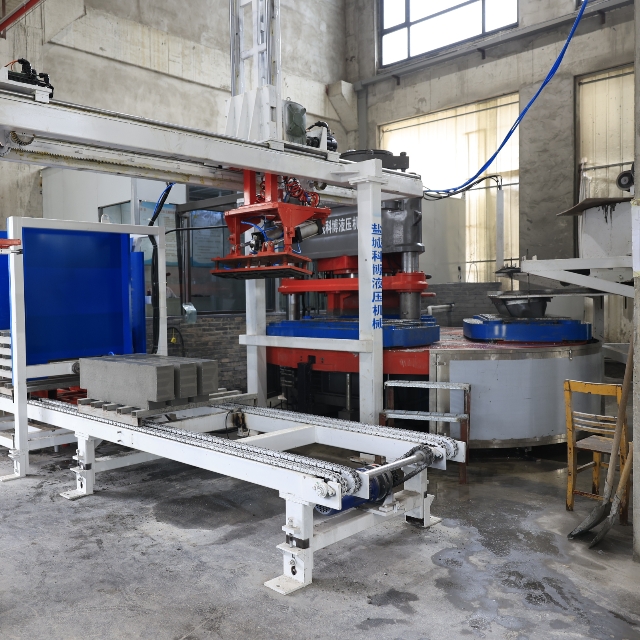

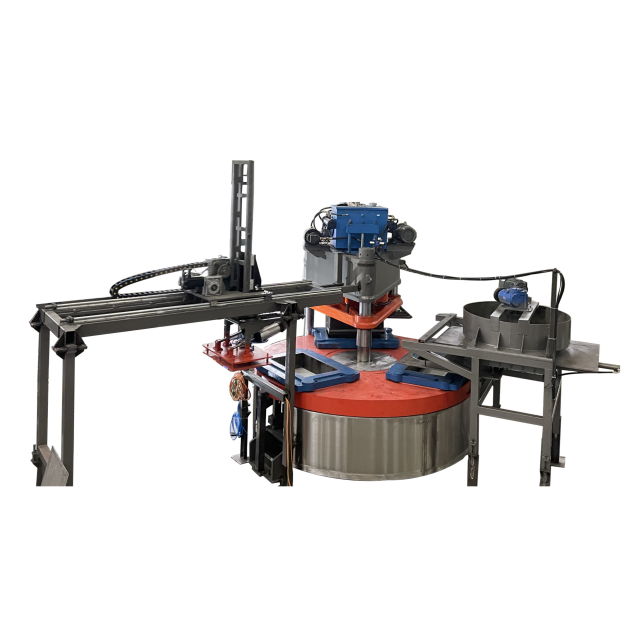

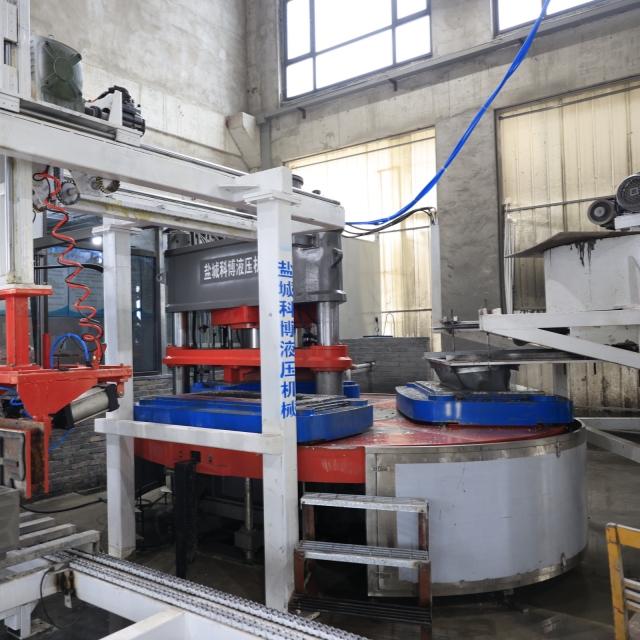

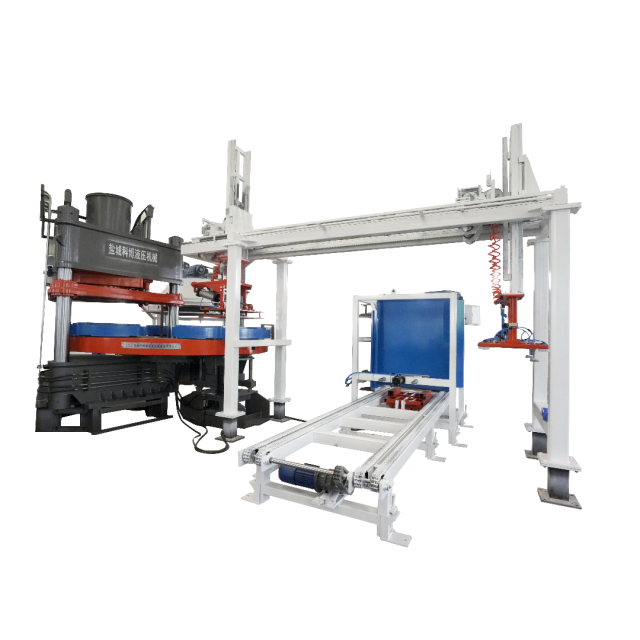

| KB650C-3 stations kerbstone making machine | ||||||||
| Name | Size(mm) | Parameter | Remark | |||||
| Host | 4850×4000 ×4500 | Stations:3 Main cylinder diameter(mm):Ø650 Main engine power(kW):15 Cycle speed(s/time):20-100 weight(kg):35000 | Forming host,Quantitative feeding High pressure filtration molding Vacuum suction,Ejection demolding process. | |||||
| Electrical control box | Voltage (V): 380+zero/ground PLC brand: Mitsubishi 3U, Japan HMI touch screen: Taiwan Weilun Proximity switch: Schneider Intermediate relay: French brand Frequency converter: Taiwan brand Other major electrical brands:Schneider Hydraulic system power(kW): 30 Hydraulic oil pump: Zhejiang Yongling vane pump Hydraulic valve: Shanghai Lixin | The PLC programming control system and HIMI touch screen are easy to operate and can monitor the automatic production process and display fault points. The hydraulic system is composed of multiple combined oil circuit valve groups, with the main valve groups using Shanghai Lixin and Zhejiang Yongling vane pumps. | ||||||
| Doser | 2600×2700 ×3700 | Power(kW): 4.5 Mixing drum diameter(mm): Ø 1400* 650 Quantitative system: weighing and measuring Pneumatic door opening: cylinder Ø 80 * 175 | The quantitative bucket is made of stainless steel, and the bucket can be replaced to produce products of different specifications. | |||||
| Automatic palletizer | 3500×1760 ×4800 | Power (kW): 3 PLC: Mitsubishi 3Ga Main electrical appliances: Schneider Frequency converter: Mitsubishi Flipping device: cylinder flipping Suction cup: vacuum generator suction cup | The front, back, up, and down are all controlled by speed reducers and frequency converters, Mitsubishi PLC programming to control the program. | |||||

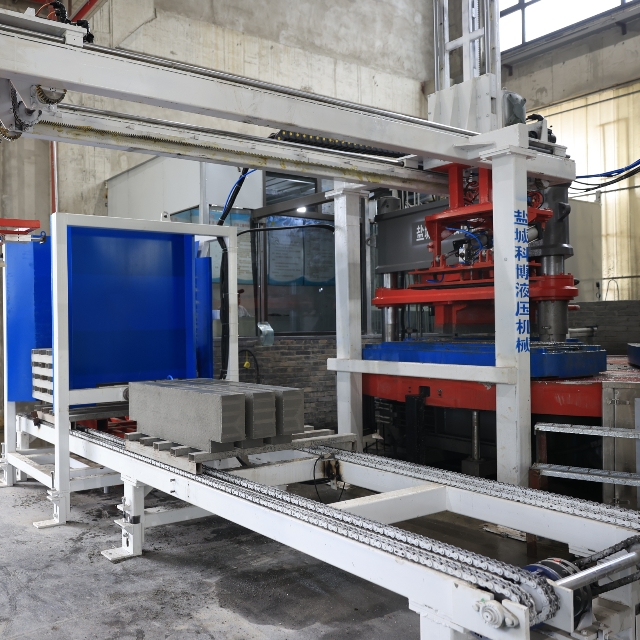

| Chain plate conveyor | 3800×2000 ×300 | Chain: 1 inch double row Power (kW): 1.5 | Automatic output of products | |||||
| Steel frame elevator | 1760×1080 ×1650 | Steel frame size (mm): 800 ×1200 ×120 Stacked layers: 10 layers Lifting cylinders: Ø 100 × 250, two pieces | Automatic supply of steel frame | |||||
| Mold frame | Mold frame: 45 # steel material CNC processing and forming | Different specifications of products share a set of mold frames | ||||||
| Kerbstone mold | Lining plate material: Cr12 Mold core material: 42CrMo cushion block | Installed in a shared mold frame | ||||||
| Vacuum | Power (kW): 11.5 | Vacuum suction,sewage,discharge | ||||||
