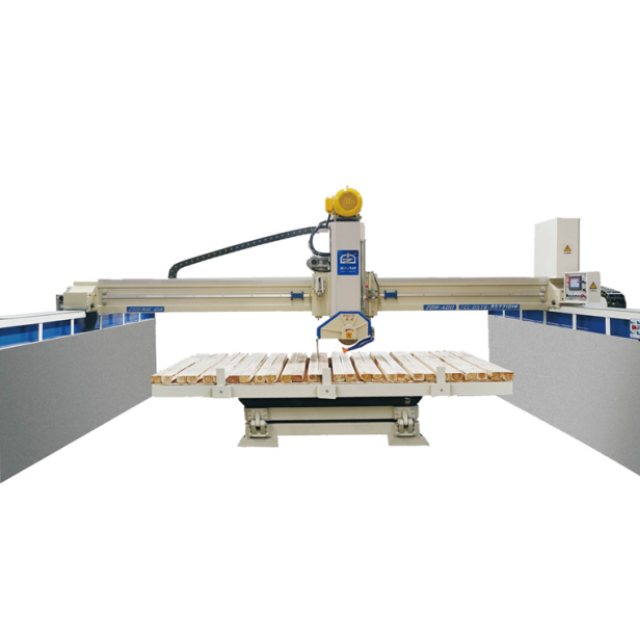

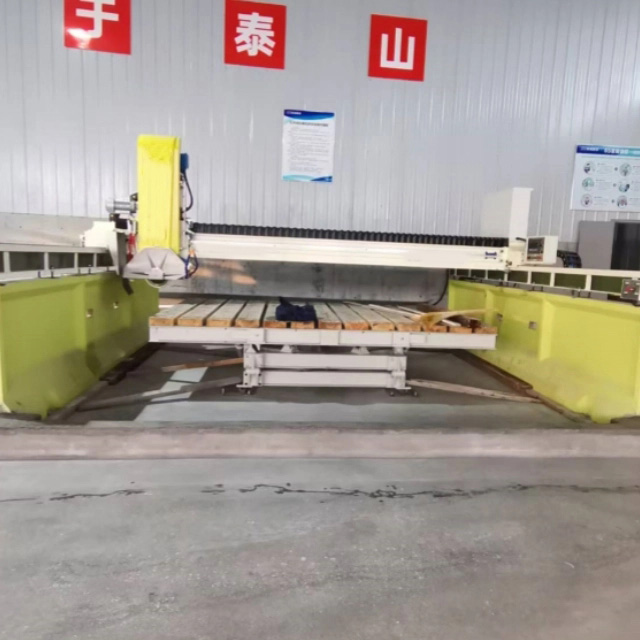

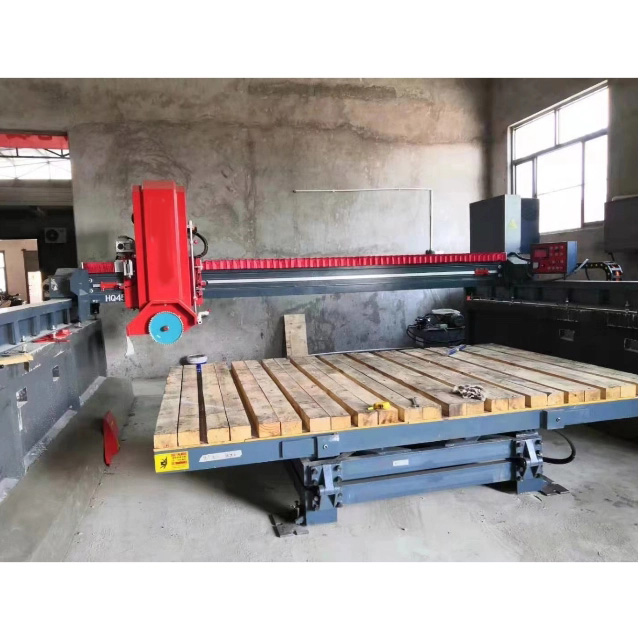

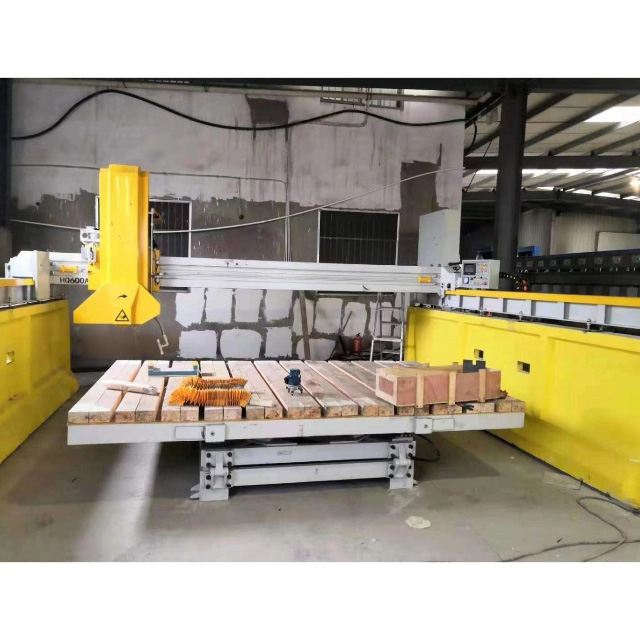

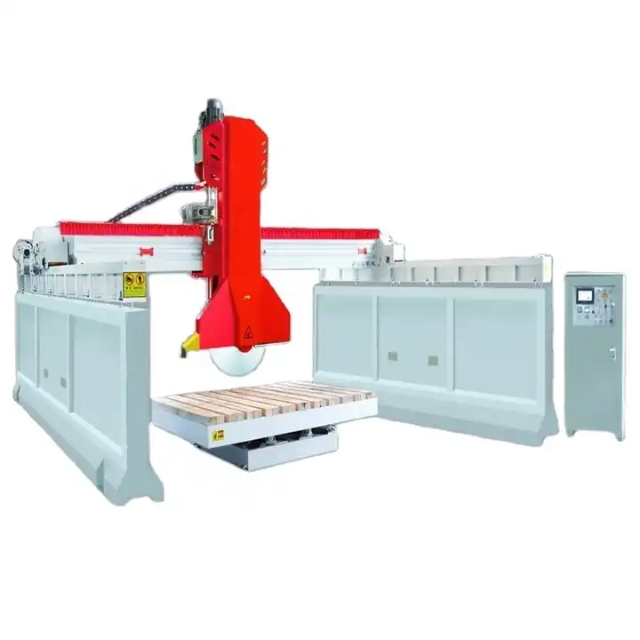

Infrared cutting machine
Type450
Max working size(mm)3200x2000x100
Max blade diameter size(mm)350-450
Table size(mm)3200x2000
Table tilting degree0-85°
Table rotating degree0-90/360°
Main motor power(kW)15
Total power(kW)21
Water consumption(m³/h)4
Machine size(mm)6000x4800x3000
Weight(T)5.4

Infrared cutting machine
Type600
Max working size(mm)3200x2000x180
Max blade diameter size(mm)350-600
Table size(mm)3200x2000
Table tilting degree0-85°
Table rotating degree0-90/360°
Main motor power(kW)18.5
Total power(kW)24.5
Water consumption(m³/h)4
Machine size(mm)6000x4800x3200
Weight(T)5.6
