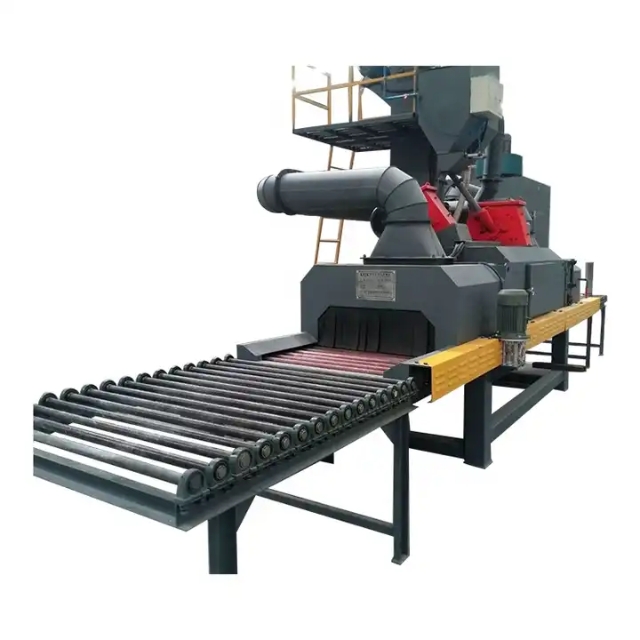

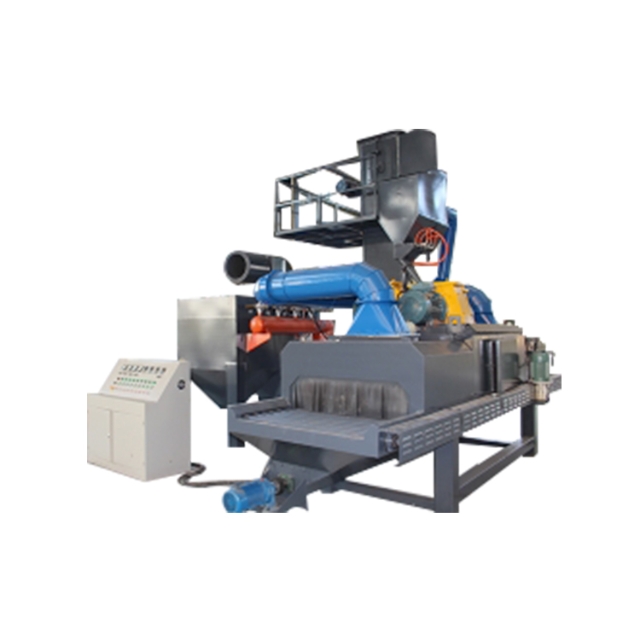

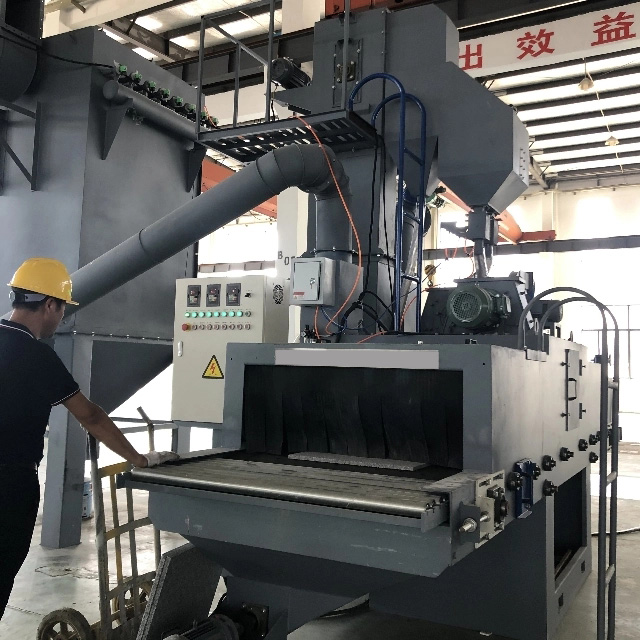

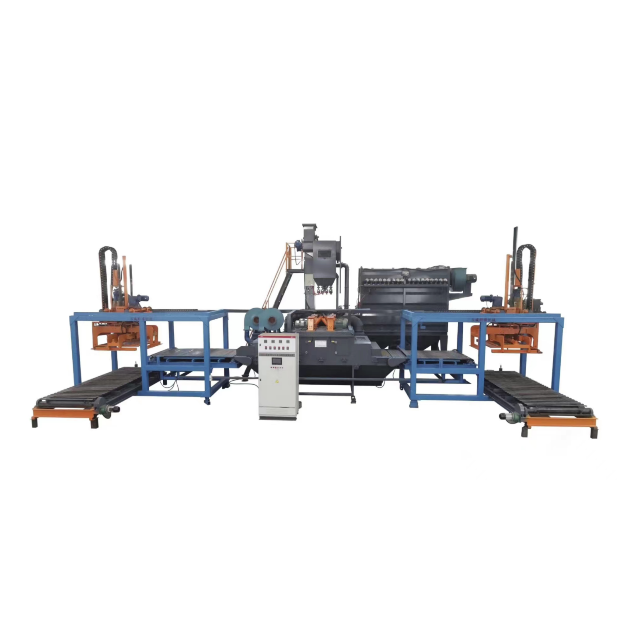

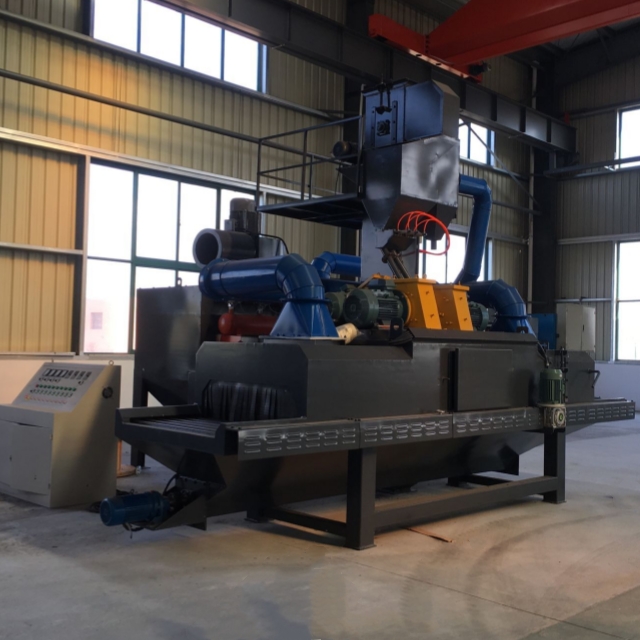

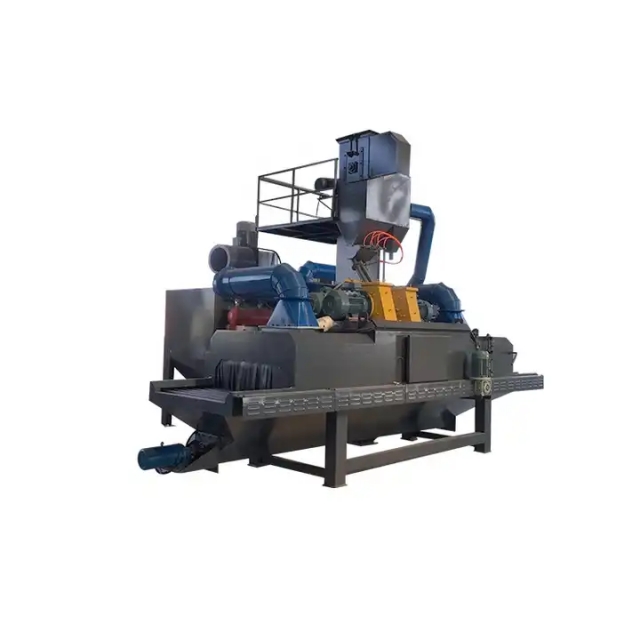

PC Tile Shot Blasting Machine

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Stone shot blasting machine
Machine size(mm)5000×1800×4800
Feed size(mm)1050×200
Crawler conveyor(kW)2.2
Shot blaster(kW)7.5*2
Vertical screw conveyorConveying capacity 50T/h
Motor 2.2kW
Elevator(kW)2.2
Shot-sand separatorSeparator speed 30t/h
High pressure blowing fan(kW)3
Dust removal systemMC-64 bag pulse total ventilation capacity 7260m3/h, fan power: 7.5kW
Dust removal hinge：1.1kW
Total power(kW)33.2

Stone shot blasting machine
Machine size(mm)5000×2300×5000
Feed size(mm)1200×200
Crawler conveyor(kW)2.2
Shot blaster(kW)7.5*2
Vertical screw conveyorConveying capacity 50T/h
Motor 2.2kW
Elevator(kW)2.2
Shot-sand separatorSeparator speed 30t/h
High pressure blowing fan(kW)5
Dust removal systemMC-64 bag pulse total ventilation capacity 7260m3/h, fan power: 7.5kW
Dust removal hinge：1.1kW
Total power(kW)35.2
